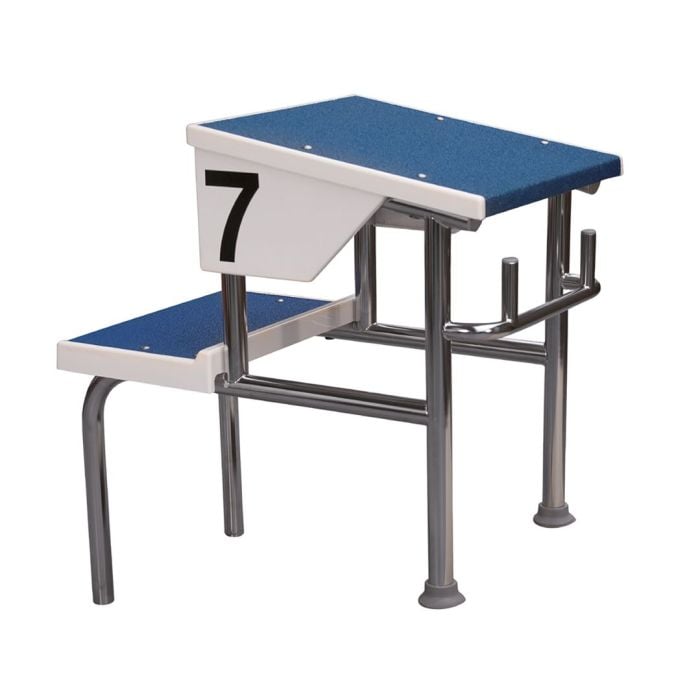

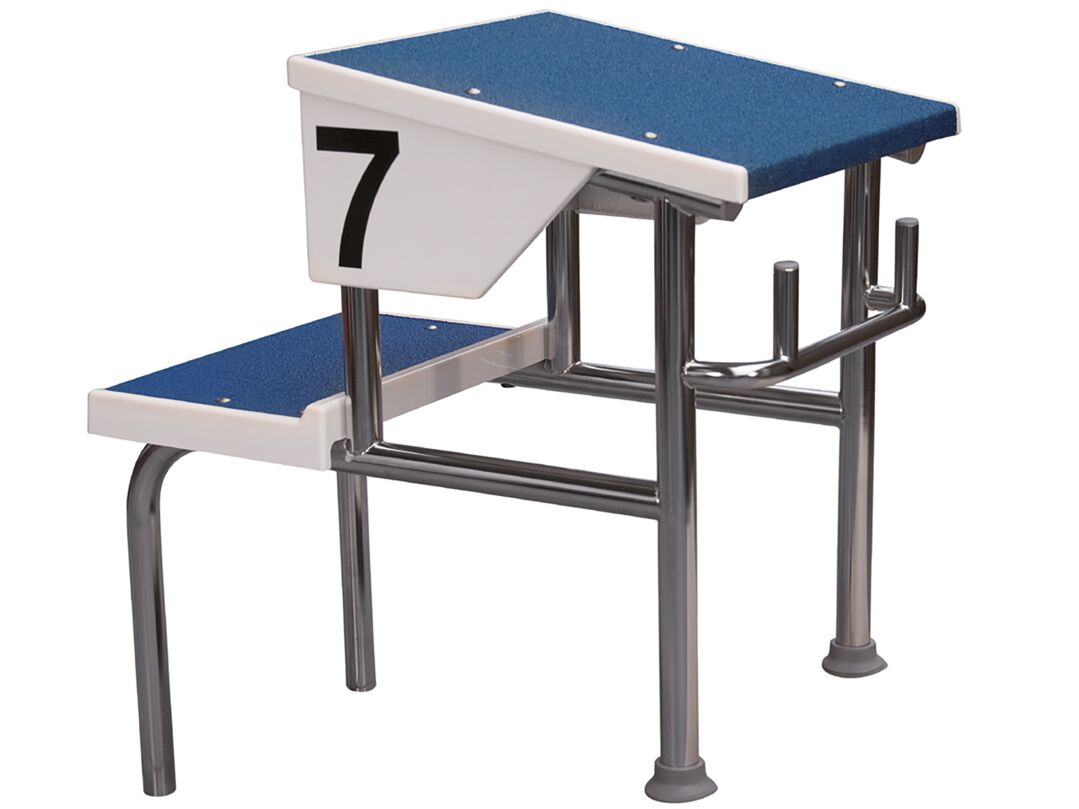

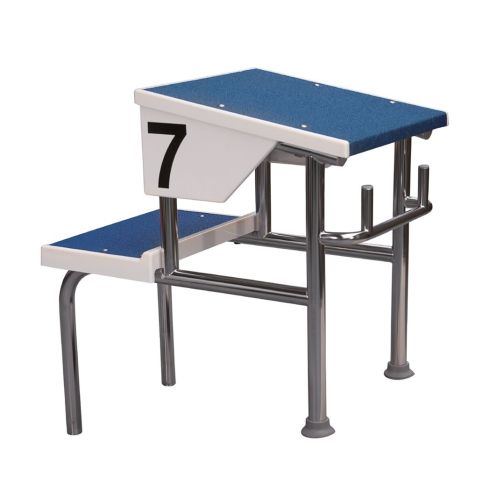

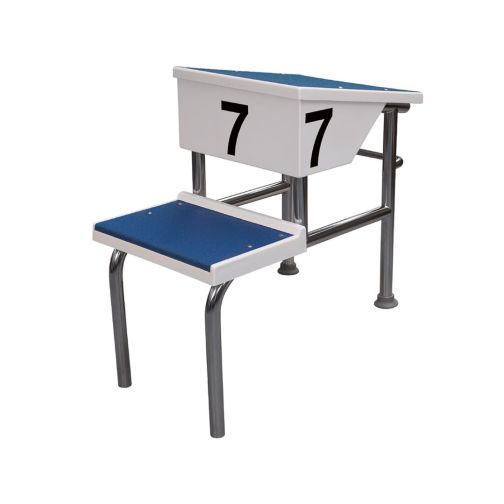

Starting Block R1690W

Pipe base in tube construction Pipe base made of stainless steel, take-off area (min. 500 x 500 mm) in box form with approximately 17 cm high side cladding for numbering and intermediate step (min. 500 x 300 mm), slip resistance class C according to DIN 51097 (continued downwards at the front of the take-off plate), sequentially numbered, take-off area tilted 10 degrees forward, underside of the steps coated with special coating according to DIN EN 13451-4, compliant with the rules of DSV and FINA. Includes standard ground sleeves with 150 mm insertion depth, includes ground sleeve insert for non-use.

- Length: 85 cm
- Height: 80 cm
- Width: 50 cm
- Material: Stainless steel V4A, K400 sanded, electropolished, and glass fiber reinforced plastic (GfK)
- Take-off area: 500 x 500 mm
- Slip resistance class C according to DIN 51097
- Target audience: School swimming and school swimming competitions

- Including standard ground sockets with 150 mm insertion depth, including ground socket insert for non-use
- Take-off area inclined 10 degrees forward
- According to DIN EN 13451-4, compliant with the regulations of DSV and FINA
- Positioning: Adjustable for almost all types of gutters
