Advantages
- Precise light distribution for sports facilities
- Energy-efficient thanks to dimming control
- Low maintenance due to long-lasting LEDs
Product information

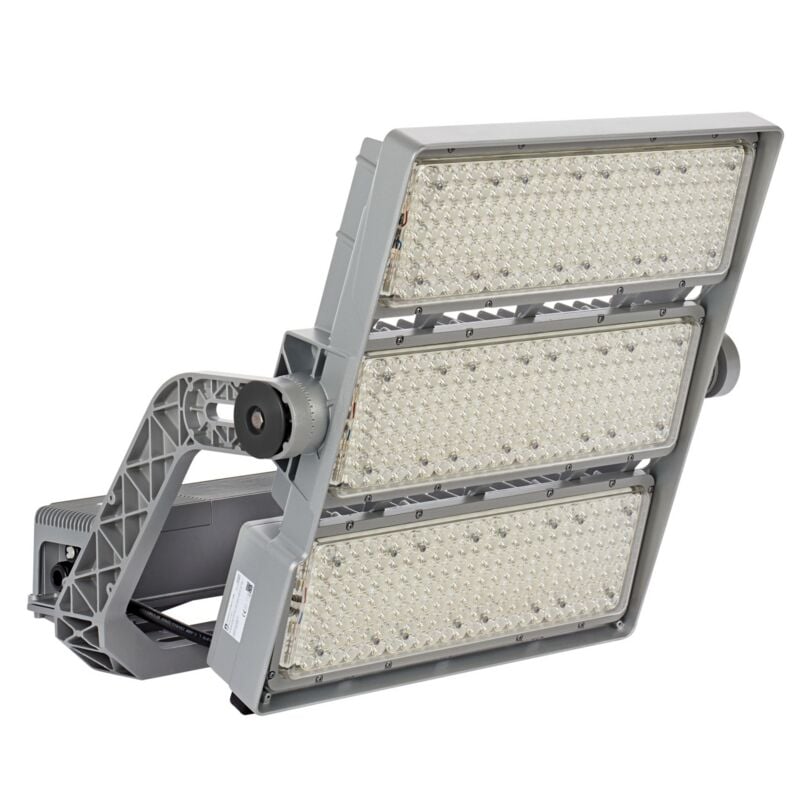

High-quality LED lighting for the sports sector. Highly efficient optical system with symmetrical or asymmetrical light distributions. Additional energy saving possibility through additional control and dimming. Easy installation and maintenance thanks to external operating device and low weight. Highly efficient optics and accessories (telescope/LO anti-glare grid) for optimal stray light control and to prevent light pollution. Minimization of maintenance costs and energy consumption thanks to long-lasting LEDs and optimized heat management of the spotlight, as well as the reliable external IP66 operating device. Service life 100,000 hours (L94).
Features
- Input voltage: 220-400 V
- Input frequency: 50 to 60 Hz
- Starting current: 20A at 230V / 30A at 400V
- Ignition time: 0.160 ms
- Power factor (min.) 0.9
- Lamp family code: LED1400 to LED2590 (140,000 to 259,000 lm)
- Light source color: 4,000K Neutral White / 3,000K Warm White
- Replaceable light source: Yes
- Number of ballasts: 1 unit
- Operating device PSD [Electronic]
- Operating device included: Yes
- Type of optical cover/lens: PCC [Clear Polycarbonate Tray]
- Constant light output: No
- Luminaires per fuse with 16 A type B 230V: 2 / 400V: 1
- LED module type: LED
- Dimmable: Yes
- Housing material: Aluminum
- Optical material: Polycarbonate
- Material of optical cover/lens: Polycarbonate
- Fastening material: Aluminum
- Mounting device: MBA [Adjustable bracket]
- Protection rating (IP): IP66 [Dust-tight, protected against strong jets of water]
- Electrical connection: 5-pole terminal block
- IEC protection class: Class I
- System power: 820 - 1500 W
- Initial lumen output (system light output): 95,000 - 223,000 lm
- Lumen maintenance factor +/-7%
