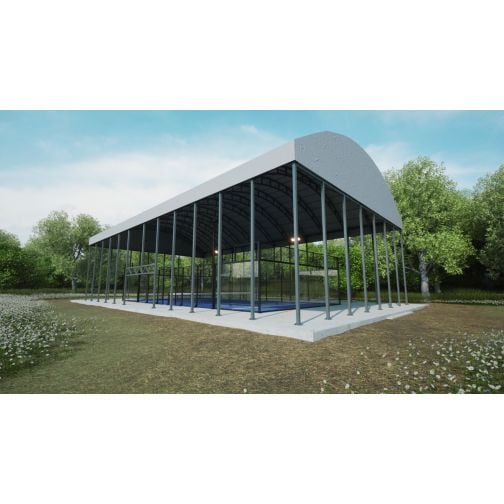

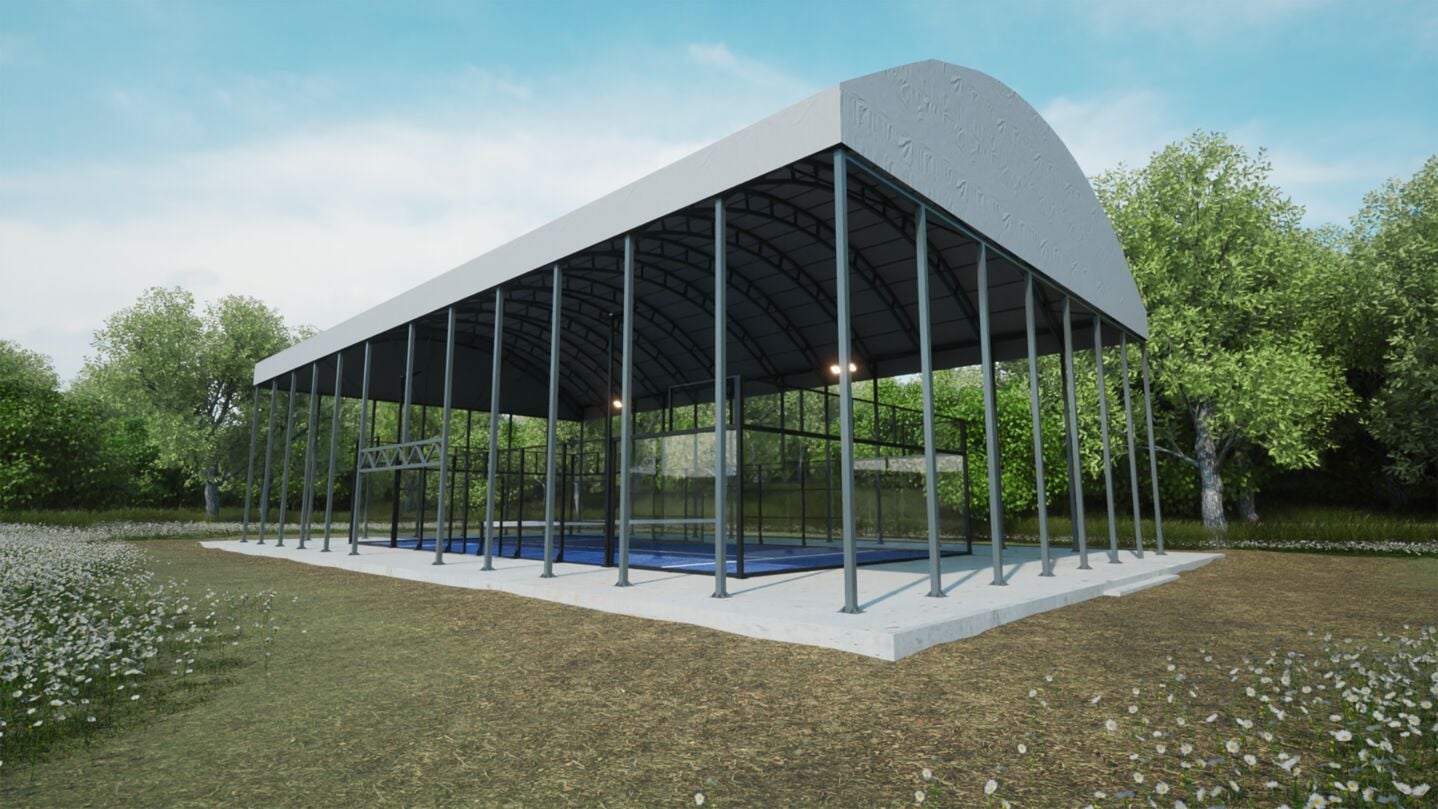

Padel Court Roofing STANDARD
Shipping notice
Longer delivery time
Article-No.: T47001
Notice!
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
Padel Court Roofing STANDARD
The paddle roof is custom made to fit your court and conditions, with widths ranging from 11 to a maximum of 14 meters. The height varies depending on the width of the roof, ranging from 9 to 10 meters. The structure is made of hot-dip galvanized steel columns, which are normally 7 meters tall. The columns can be made shorter upon request. The roofing is made of high-quality PVC sailcloth.
The standard version is characterized by having a roof covered with PVC sailcloth starting at a height of 7 meters.
The standard version is characterized by having a roof covered with PVC sailcloth starting at a height of 7 meters.
Features
- PVC canvas on the roof, from a height of 7 m
- 100 x 100 mm columns, hot-dip galvanized
- Arches made of double tube
- V reinforcements in longitudinal direction
- Steel cables for cross-reinforcement
- Beams made of 450 x 5,080 x 2 mm galvanized steel Z-450, with frontal drainage
- Front struts
- Cross struts
- Straps for the roof and the entire perimeter, made of galvanized steel Z-450
- Assembly included
- 100 x 100 mm columns, hot-dip galvanized
- Arches made of double tube
- V reinforcements in longitudinal direction
- Steel cables for cross-reinforcement
- Beams made of 450 x 5,080 x 2 mm galvanized steel Z-450, with frontal drainage
- Front struts
- Cross struts
- Straps for the roof and the entire perimeter, made of galvanized steel Z-450
- Assembly included
