Padel Court Roofing OPTION B
Shipping notice
Longer delivery time
Article-No.: T47003
Notice!
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
We can only consider requests from institutions, organisations and companies. Due to individual taxes, delivery times and costs depending on your country, you can only request a quote.
Padel Court Roofing OPTION B

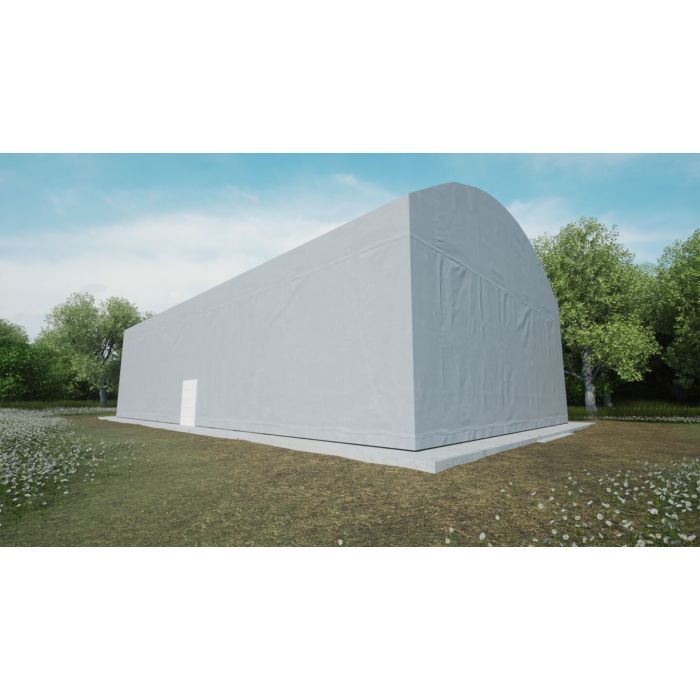

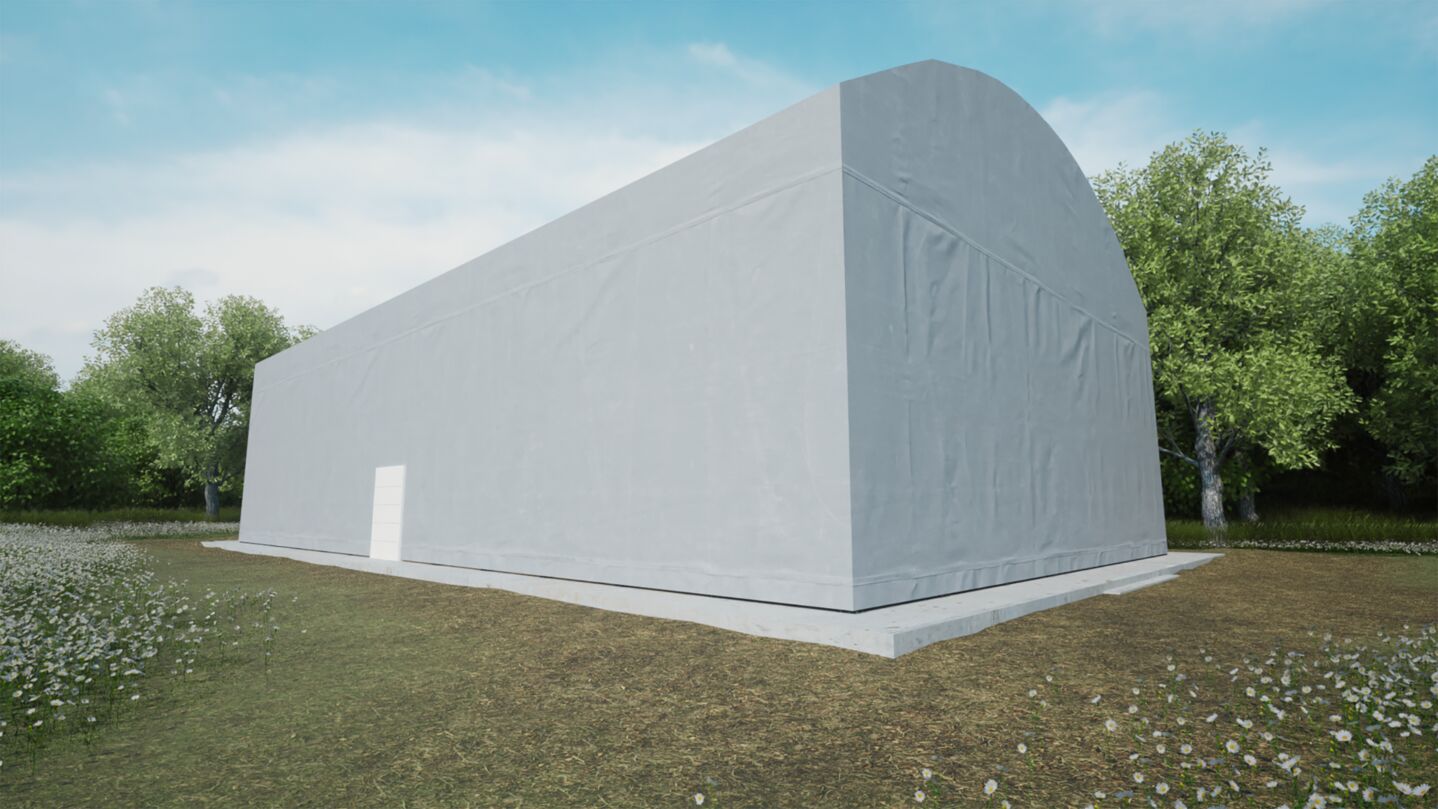

The padel canopy is individually customized to fit your court and conditions, with widths ranging from 11 to a maximum of 14 meters. The height varies depending on the width of the roof, between 9 and 10 meters. The structure consists of hot-dip galvanized steel columns, which typically have a height of 7 meters. The columns can be lower upon request. The roof is made of high-quality PVC canvas.
Option B distinguishes itself by completely reaching the ground. It can be manually opened up to a height of approximately 2.5 meters using a crank.
Option B distinguishes itself by completely reaching the ground. It can be manually opened up to a height of approximately 2.5 meters using a crank.
Features
- PVC canvas on the roof, from a height of 7m
- 100 x 100 mm columns, hot-dip galvanized
- Double tube arches
- V-reinforcements in the longitudinal direction
- Steel cables for transverse reinforcement
- Beams made of 450 x 5,080 x 2 mm galvanized steel Z-450, with frontal drains
- Front struts
- Cross struts
- Straps for the roof and the entire circumference, made of galvanized steel Z-450
- Assembly included
- 100 x 100 mm columns, hot-dip galvanized
- Double tube arches
- V-reinforcements in the longitudinal direction
- Steel cables for transverse reinforcement
- Beams made of 450 x 5,080 x 2 mm galvanized steel Z-450, with frontal drains
- Front struts
- Cross struts
- Straps for the roof and the entire circumference, made of galvanized steel Z-450
- Assembly included
