Advantages
- Suitable for all standard gutter systems (e.g. stainless steel gutter, Finnish and Wiesbaden gutter)
Product information

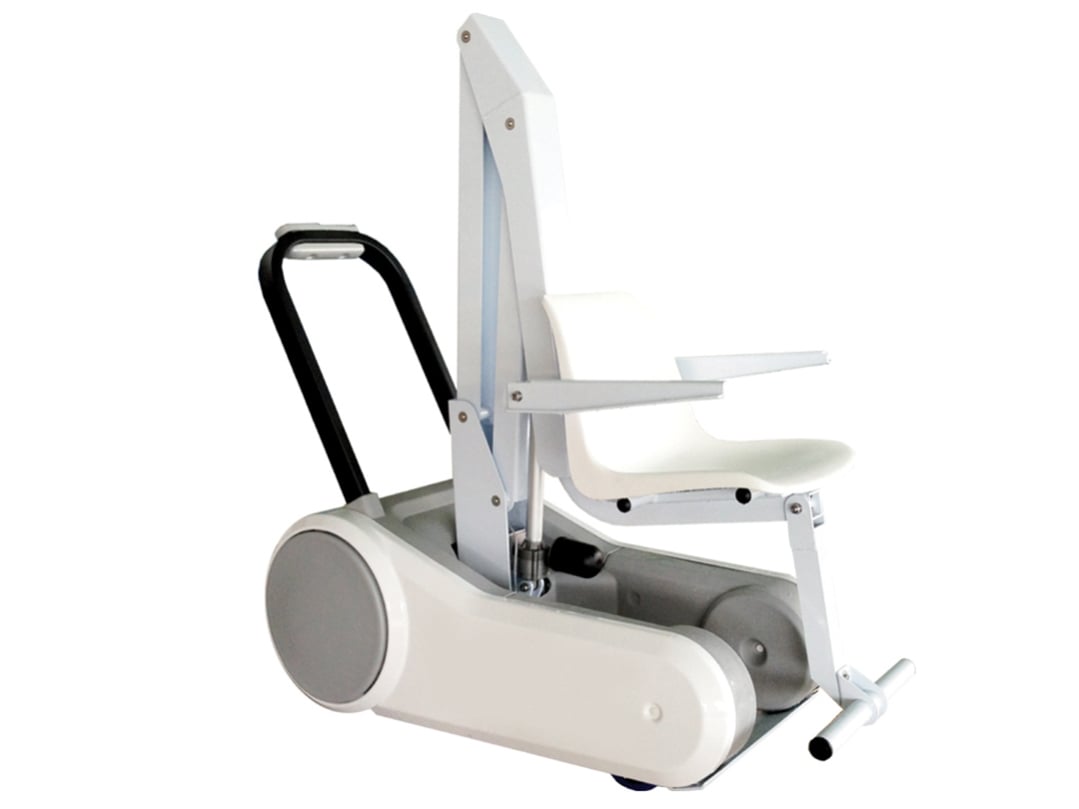

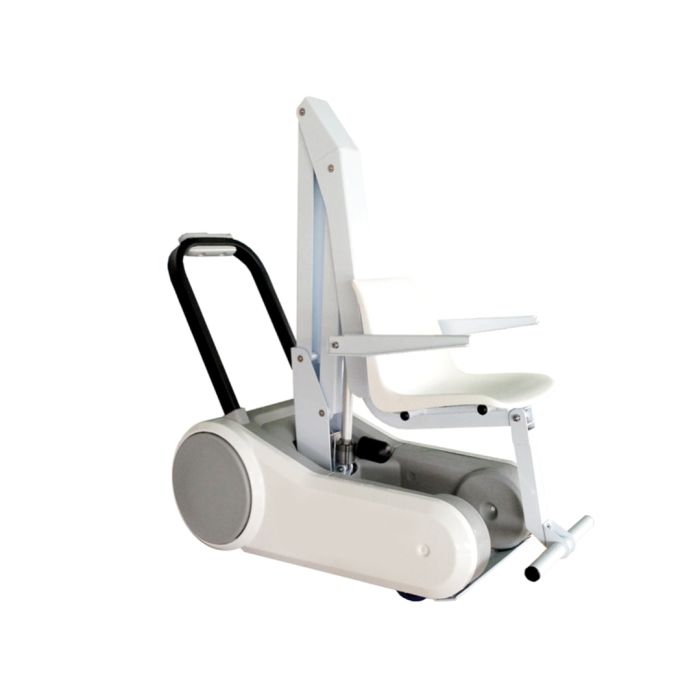

Mobile Pool Lift for Flexible Use:
The mobile pool lift R36 offers accessibility on four wheels. With its low weight, the lift is easy to manoeuvre and safely and simply moves people with limited mobility into the water.
High-Quality Features:
The device is equipped with 4 wheels, 2 of which have brakes, and features precise controls. The pool lift is operated via an instrument unit. With a push button, you can move the attached seat up and down. The unit also includes an emergency stop and a battery charge indicator. The battery should be recharged after approximately 50 lift movements. This is done easily and conveniently with the included charger.
In addition to functionality, the lift also features high-quality stainless steel components, which are powder-coated white. This material ensures a long service life for the pool lift.

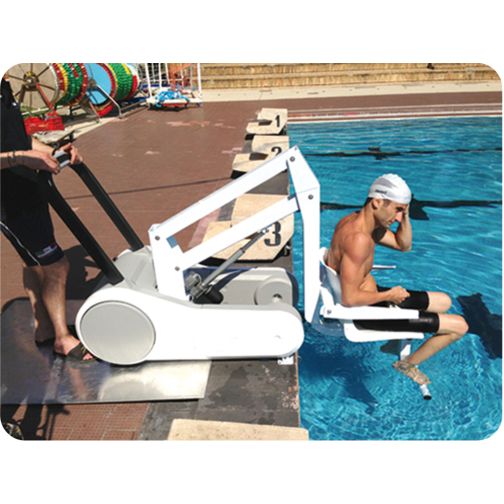

Mobile Use in Almost Any Swimming Pool:

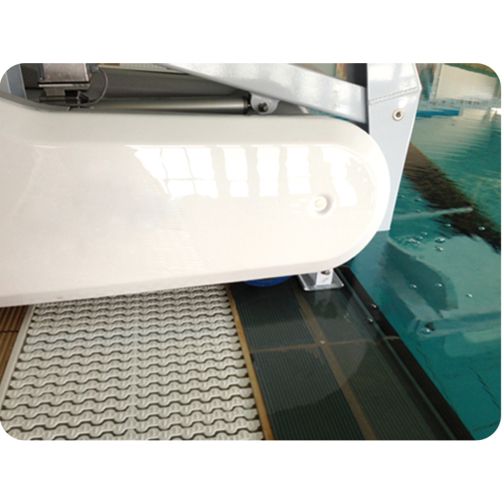

A fixed pool lift requires a floor sleeve and many other structural measures. The mobile device can be used quickly and easily in almost any swimming pool. Whether the pool has a Finnish, Wiesbaden, or stainless steel gutter, the lift fits perfectly. Additionally, the lift can be stored conveniently in an adjacent room and does not take up permanent space at the poolside compared to a fixed solution. Outside the pool, the seat height from the floor is 50 cm. Inside the pool, the seat can be lowered up to 62 cm, measured from the pool edge downwards.
Features
- Dimensions LxWxH: 124.5 x 64 x 151 cm, the lower part of the lifter has a length of 115 cm.
- Load capacity: 136 kg
- Net weight: 140 kg
- Material: Aluminium, stainless steel (1.4571)
- Colour: white powder-coated
- Power supply: built-in 24V batteries (incl. charger)
- Positioning: at the pool edge, specially designed for public pools – suitable for all standard gutter systems where the water level is at a similar height to the pool surround, e.g. Wiesbaden gutter, Finnish gutter, stainless steel gutter, etc.
- Medical device: Class 1
Technical Data
| Dimensions | |
|---|---|
| Width | 64 cm |
| Height | 152.2 cm |
| Length | 124.5 cm |
| shipping weight | 190 kg |
| Package length | 140 cm |
| Package width | 70 cm |
| Package height | 170 cm |
| Properties & Features | |
| Sports | swimming |
| Operation site | indoor & outdoor |
| Power supply | rechargeable battery mode |
| Operating voltage | 24 V |
| Material | stainless steel |
| Colour | white |
| Weight | 140 kg |
| Range of use | public area, therapy |
Scope of Supply
Downloads
Product Safety
-
Medical device according to MDR EU Directive 2017/745Classification according to MDR: Class I
