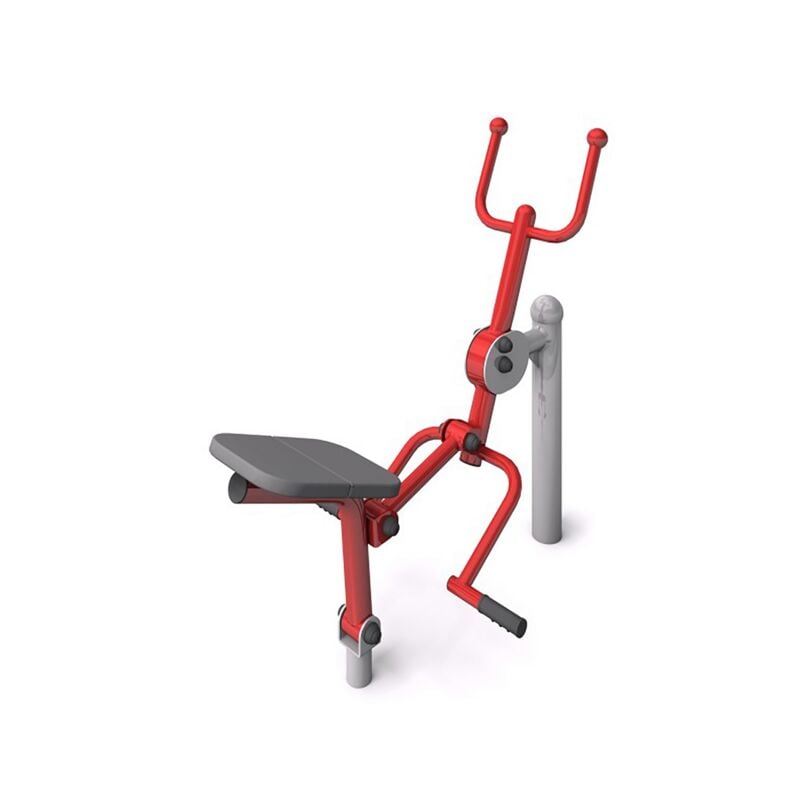

Inter-Play® Outdoor Rider

The Inter-Play® Rider is an element from the series of outdoor aerobic equipment. To perform the exercise, you place your feet on the footboards and hold on to the handle spheres with your hands, then push off with your legs while pulling up with your arms at the same time. This engages both upper and lower muscle groups, improves endurance, and enhances motor coordination.

The device is made of corrosion-resistant and powder-coated steel. The arms and hand grips are made of a tube measuring 42.4 x 3.2 mm, which provides excellent ergonomics and user safety. The tube grips are decorated with spherical elements. The entire structure is welded and has no plastic ends, except for bearing connections where individual parts of the device can be serviced/repaired. The levers and rosettes are made of 8 to 10 mm thick steel sheet. The device includes self-lubricating roller bearings with the possibility of maintenance. The footboards are made of aluminum.

The device is mounted on a support post made of a tube measuring 88.9 x 3.6 mm. The mast is secured with a diameter of 220 mm and a flange that is 12 mm thick at the base. The flange, along with the entire device, is bolted to the ground with M16 screws. M16 anchor nuts are secured against loosening.

- Equipment dimensions (LxWxH): 1.25 x 0.71 x 1.23 m
- Safety zone: 4.25 x 3.71 m
- Material: Steel, powder coated
- Self-lubricating roller bearings
- Size variances of up to +/- 5% are permissible.

- Conformity certificate according to standard EN 16630:2015-06

The provided illustration should be considered as illustrative. It may slightly differ from the actual product. Size differences of up to +/- 5% are permissible.
