Gum-Tech® Impact Protection Mat 3D PUZZLE

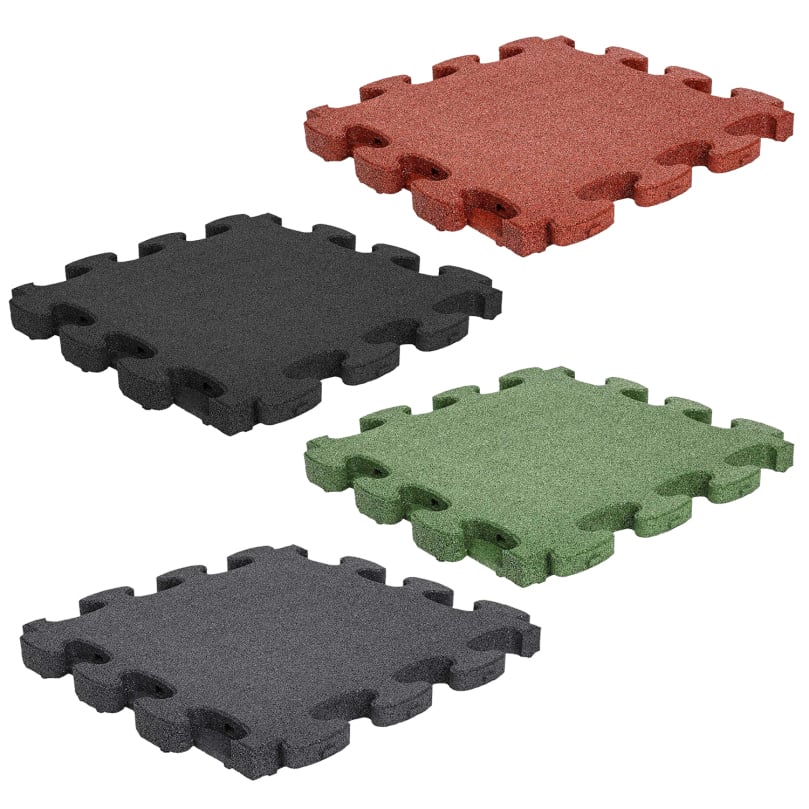

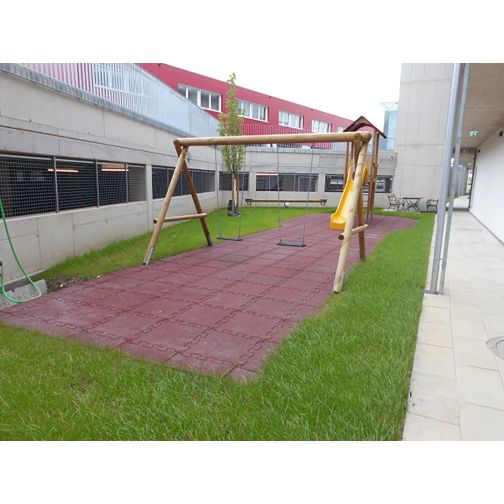

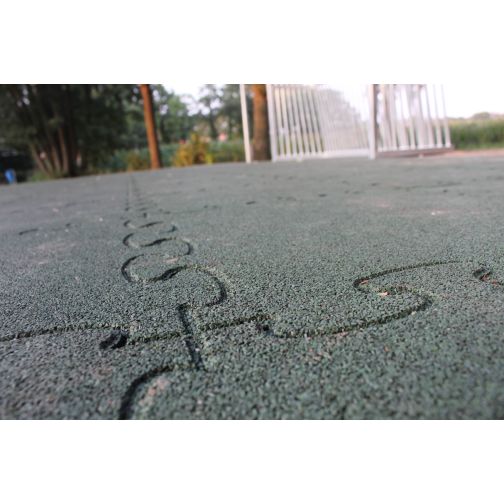

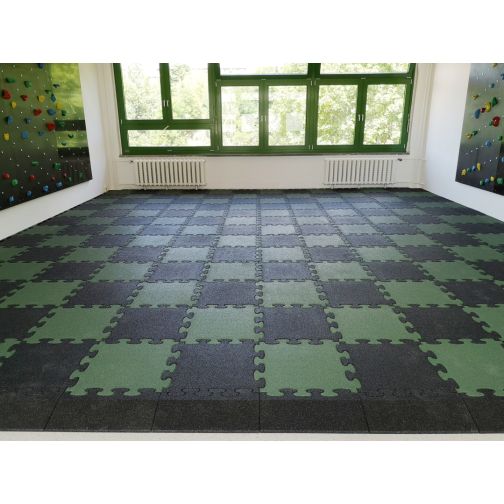

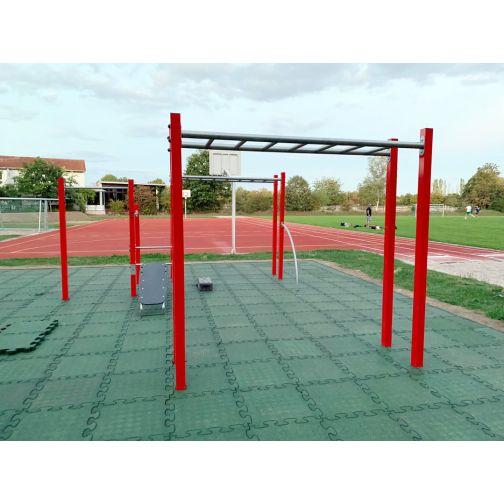

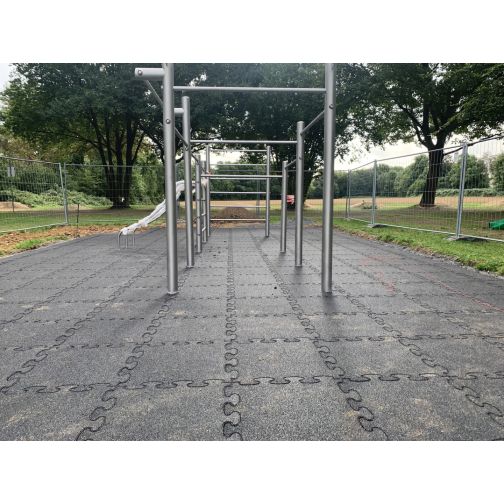

The fall protection tiles made from recycled rubber granules are especially suitable for fall protection on playgrounds. The surface of the Puzzle Mat 3D rubber tiles is open-pored and smooth, and on the underside of the fall protection tiles, there are 4 cm wide drainage channels for water runoff. Each tile has three puzzle elements that can be laid on the intermediate elements of the other tile. The buttons on the puzzle elements can also be fitted into the button recesses on the opposite side. The tiles are available in the dimensions 55 x 55 cm.

- Dimensions: 55 x 55 cm per piece
- Base material: Recycled rubber granules (1-3 mm grain size)
- Binder: PU adhesive
- Fire rating: Efl (Flammability by direct flame action, burning behavior by radiant heat)

- Water-permeable
- Triple secured interlocking
- Fire protection class: Efl
- TÜV certified according to MSZ EN 11767-1:2018

Minor color defects and color variations are possible due to the differences in the reprocessed base materials.
The products have a width and length tolerance of 1-2% and a thickness tolerance of 1-2 mm. It is recommended to store the products for at least one week before installation, so that they can reach their final sizes.
