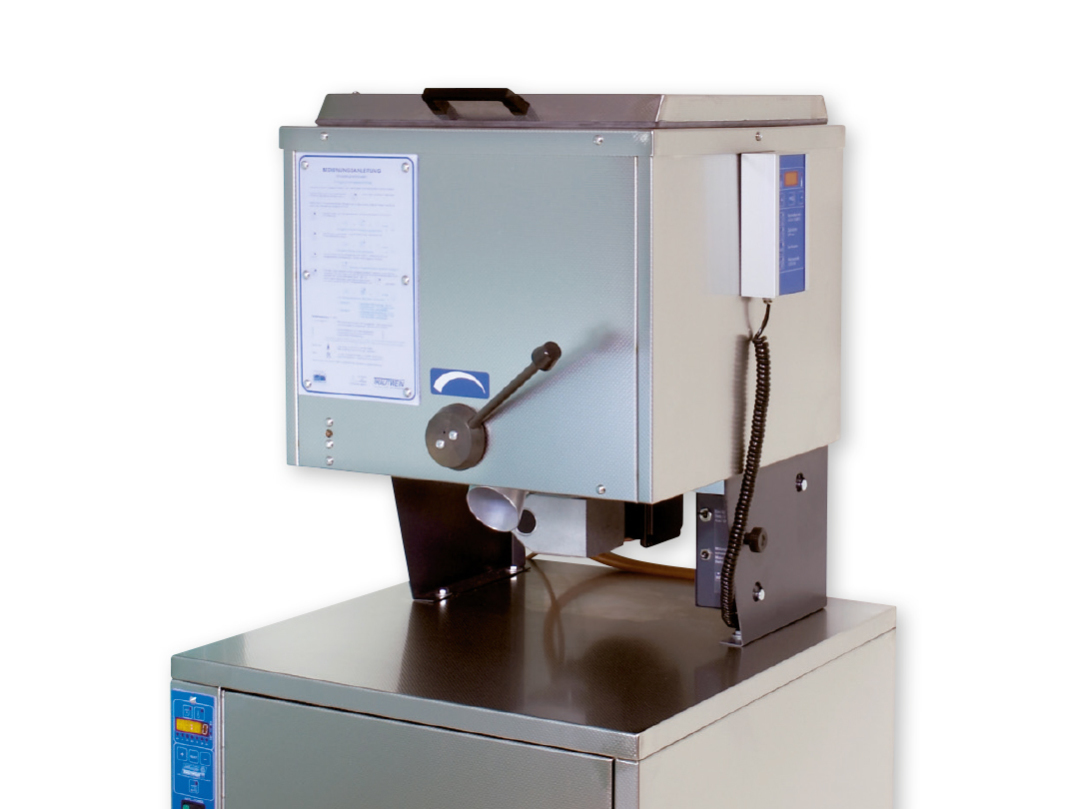

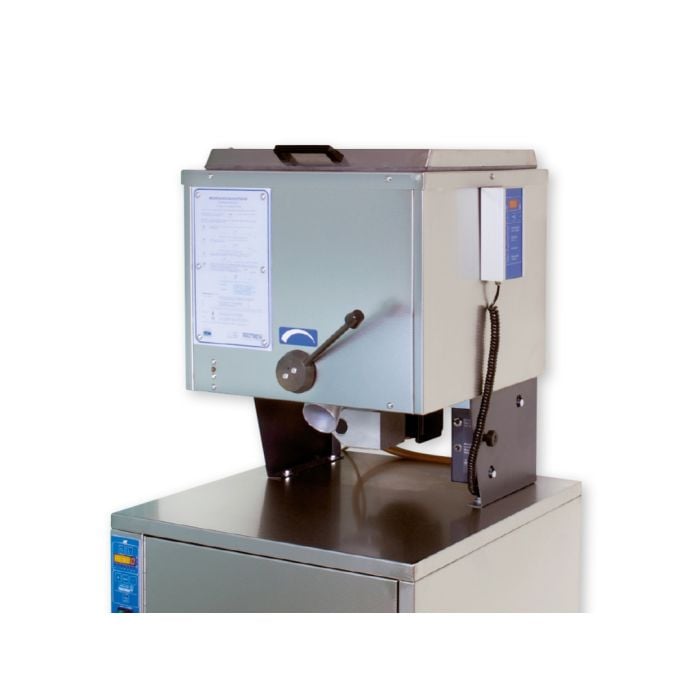

Trautwein® Fango Stirrer AR 50 N

The Fango mixer is used in physical therapy as a preparation device for fango paraffin and fango packs. In the Fango mixer AR50 N, you can process and heat up to 63 kg of fango mass. The highly compacted aluminum kettle allows gentle and energy-saving heating of the fango. The mixer can be used as a tabletop device or placed on a warming cabinet using the attached consoles.

The special counter-flow stirring blade ensures even mixing and heating of the fango mass. The heated outlet valve prevents clogging and clumping of the mass, allowing the fango paraffin to be evenly distributed on the fango sheet. The fango mixer is mounted in the fango kitchen or on a warming cabinet using screws (diameter: 8 mm).

Difference between aluminum and stainless steel kettle
The kettle of the fango mixer is available in stainless steel and aluminum versions. In the case of the stainless steel mixer, heat transfer is achieved through a heat transfer oil. The kettle bottom is hermetically sealed with the maintenance-free heat transfer oil filling. This special construction ensures energy-saving heating with approximately 30% consumption advantage. Therefore, you can keep operating costs low during use.

Note on general fango application
In physical therapy, healing mud or fango pack is used in heat therapy. The fango mass, fango-paraffin, is heated in a large kettle and dispensed through the outlet valve. Typically, the fango mass is dispensed onto a sheet and then stored in a warming cabinet for application. The thermal mud is kept warm on the body area using fango wraps and cloths, thus unleashing its effect.

- With control panel for adjusting the functions
- Useful volume: approx. 63 kg of fango mass
- Heating power: 3 kW
- Average energy consumption: 105 Watt/kg
- Dimensions: (WxDxH) 53x53x64.5 cm
- Power supply: 400 V (optional: 230 V for an additional charge: T5232)

- Highly compressed aluminum kettle
- With removable stirring paddle
- Heated tap
- Stainless steel sheet cladding

The comfort control (T5231) offers additional operating comfort and energy-saving settings. With the weekend and holiday program (daily setting), the heating can be economically and efficiently adjusted. The sterilization automation also ensures gentle heating of the fango mass and overnight cooling stirring.
