Advantages
- Very high load capacity
- Self-laying due to wide contact surface
- Rounded edges according to DIN 18035
Product information

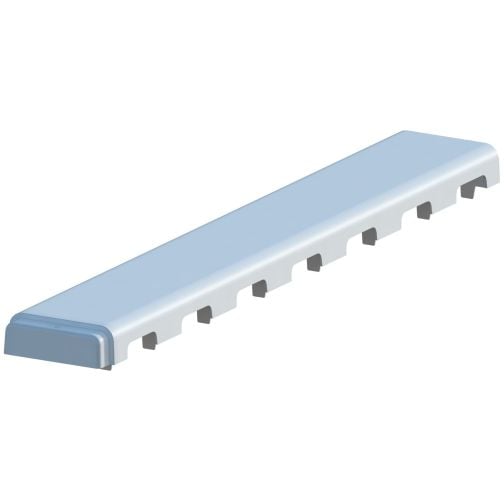

Covers for covered plastic channels
Covers for covered channels according to DIN 18035-T3. UV-resistant material GF-UP, wall thickness 5 mm, impact-resistant, overlapping end faces with integrated fixing pin, secure against horizontal displacement, with and without radius (R 36.5 m). Dimensions: 99.8 x 16 x 5 cm. This variant complements your sports facility or stadium track perfectly and with a modern design.
Features
- Material: Glass fiber reinforced plastic with unsaturated polyester resin
- Dimensions: 99.8 x 16 x 5 cm
- Design: straight or curved (with a radius of 36.5 m)
- Excellent weather and UV resistance
- Solid wall thickness of 5 mm
- Integrated fixing pins prevent horizontal displacement
- Edges are rounded with a radius of 20 mm according to DIN 18035
- Suitable for use with maintenance equipment. The load capacity A 15 according to DIN 18035 is tested according to EN 1433.
If required (at an additional cost), a locking mechanism for protection against unauthorized removal is available.
