Advantages
- According to DIN EN 1176
- With detailed assembly instructions
- Made in Germany
We offer a voluntary 3 year warranty for this product, in addition to the statutory warranty.
Product information

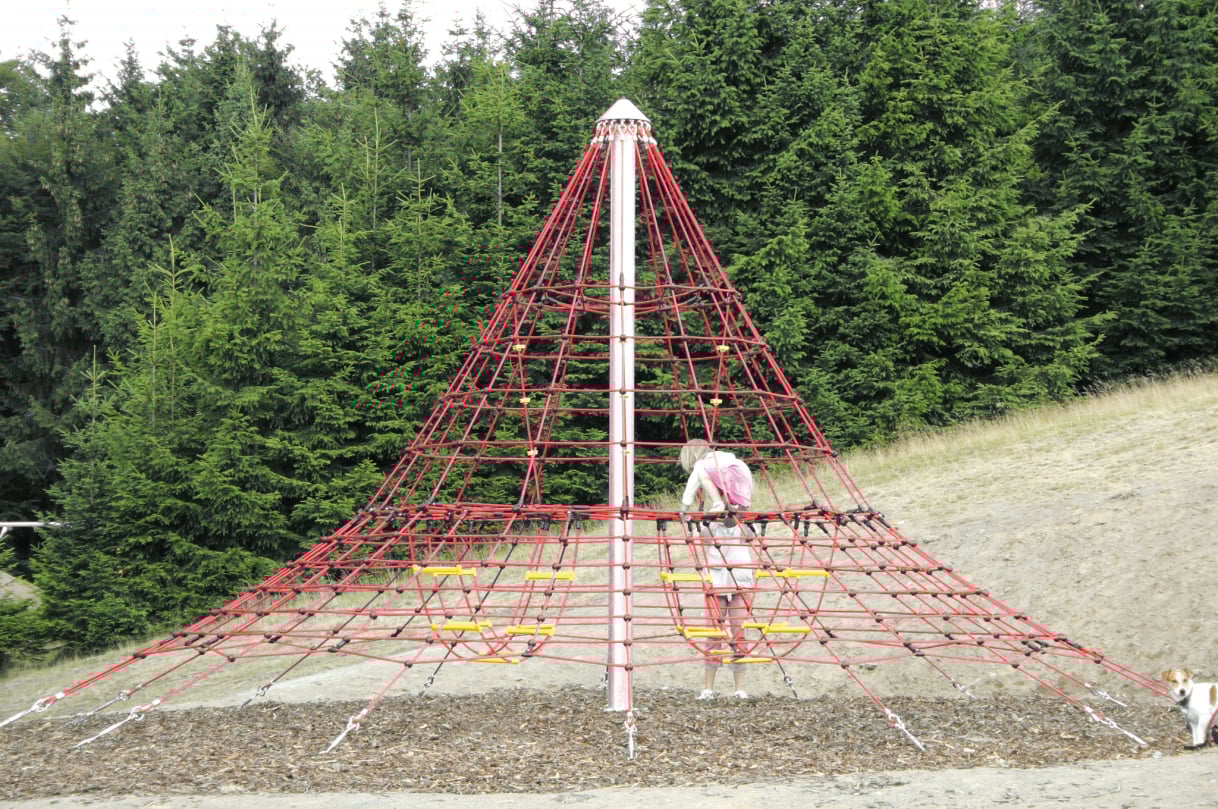

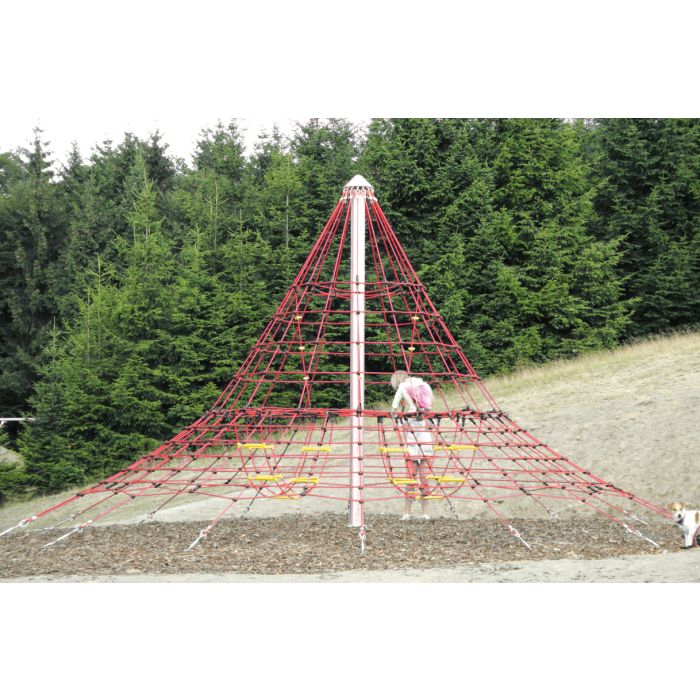

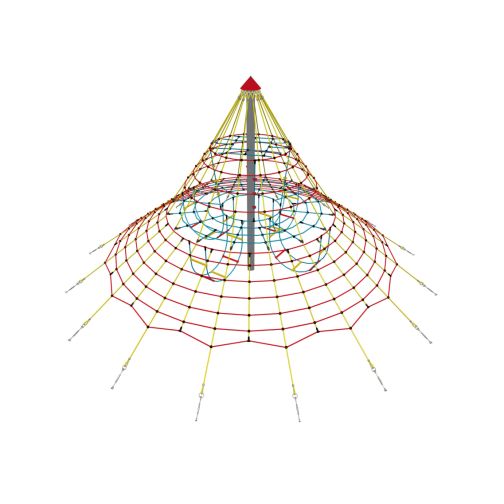

Cheops Pyramid Midi
The rope net pyramid offers an extremely large climbing surface with exciting and enticing heights. Drawn-in net levels ensure the necessary safety for the climbing pyramid. However, the rope net tower also has an interesting interior: swing ladders, climbing ropes, and net levels provide variety and invite you to swing, but also to rest and enjoy the climbed height.
Features
- Upright posts made of hot-dip galvanized steel, Ø 160 mm, 5 m long with red-coated aluminium cap
- 4 swing ladders with plastic rungs
- 4 climbing ropes
- 2 horizontal nets at 1.4 m and 3.1 m height
- 16 turnbuckles, M16, galvanized
- Ropes and nets made of Hercules rope, Ø 16 mm, 6-strand with steel cable core
- Equipment height: 4.20 m
- Equipment area: Ø 8.35 m
- Fall protection area: 72.40 m²
- Concrete requirement: 4.30 m³
- Recommended fall protection: Rounded gravel ø 2-8 mm, 40 cm deep or equivalent
- Suitable for children from 6 years
- For up to 40 users
Safety Instructions
- Recommended as impact protection: Round gravel ø 2-8 mm, 40 cm deep or equivalent
- Suitable for children aged 6 and above
- For up to 40 users
Technical Data
| Dimensions | |
|---|---|
| Height | 4.3 m |
| Diameter of variant | 8.35 m |
| shipping weight | 323 kg |
| Properties & Features | |
| Fall height | 1.5 m |
Scope of Supply
Downloads
Product Safety
-
WARNING! Adult supervision required.
More information about the manufacturer
- Manufacturer
-
Huck Seiltechnik GmbHDillerberg 3DE - 35586 Aßlar-BerghausenEmail: [email protected]
- Contact partner
-
Huck Seiltechnik GmbHDillerberg 3DE - 35586 Aßlar-BerghausenEmail: [email protected]
Sustainability
- We offer a voluntary 3 year warranty for this product, in addition to the statutory warranty.
