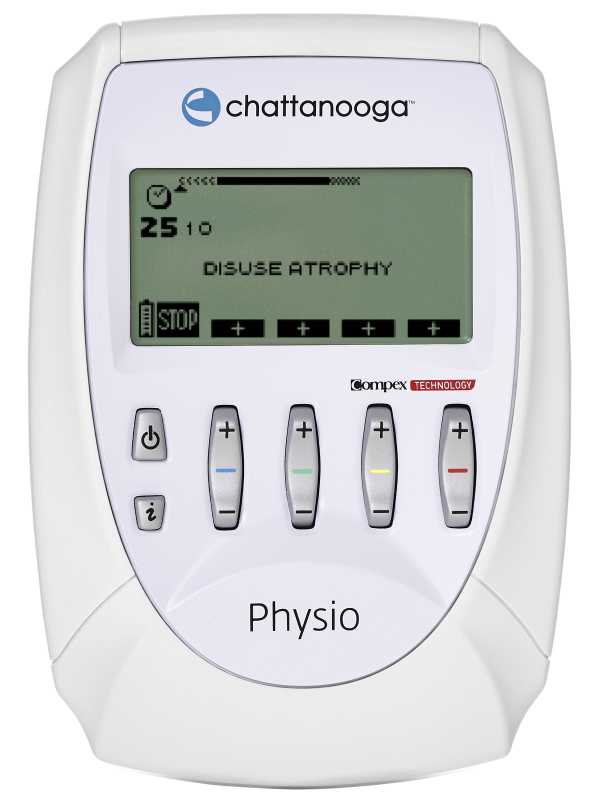

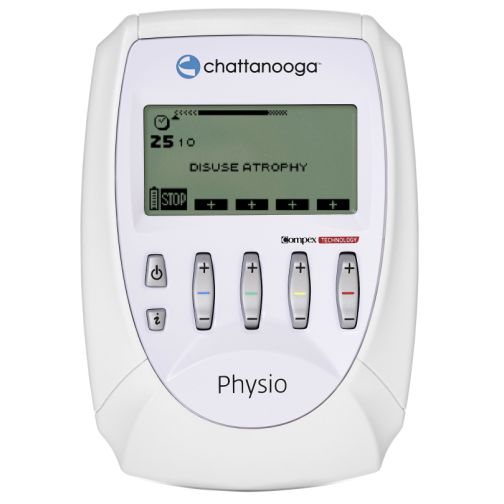

CHATTANOOGA® Intelect Mobile Physio

The Physio is a comprehensive 4-channel stimulator that covers all areas of electrotherapeutic tasks: programs of the standard version (TENS/NMES), the full version (neurology, ACL), and programs for denervated muscles, iontophoresis, hyperhidrosis, urology, and edema prophylaxis.

Programs for 4 categories of the standard version + 4 of the full version + 3 of the optimum version: rehabilitation I&II, pain reduction I&II, vascular, neurological rehabilitation, fitness I&II, incontinence, denervated muscles, and direct current (iontophoresis, hyperhidrosis, and edema). The programs of the optimum version are available. Programs can be adjusted and new programs can be created, so that each patient can be treated with individual settings.

Includes Muscle Intelligence technology. 4 functions in all 4 channels: Mi-Scan, Mi-Tens, Mi-Range, Mi-Action (triggering stimulation through voluntary muscle contraction during the ongoing session).

- Dimensions: 13.8 x 9.5 x 3.3 cm
- Weight: 300 g (including battery)
- Channels: 4
- Maximum pulse intensity: 120 mA
- Intensity levels: 0.25 mA
- Pulse duration: 30–1000 μs
- Pulse frequency: 1–150 Hz
- Waveform: Monophasic, Continuous, Cycle-controlled, Square Pulse, Triangle Pulse, Symmetrical Biphasic 100% compensated, Galvanic/DC

- Independent operation and fast battery charging
- Tool for all electrical therapy
- Includes Muscle Intelligence technology
